Analytical determination of Cyclizine by using Ion Selective Electrodes

B. K. Sarma, Seema Rani*

Department of Pharmacy, Mewar University Campus Vasundhra Ghaziabad 201012, U.P, India.

*Address for Corresponding Author

Seema Rani

Department of Pharmacy, Mewar University Campus Vasundhra Ghaziabad 201012, U.P, India.


Objective: Potentiometric determination of Cyclizine by using Ion Selective Electrodes. Materials and methods: The highly selective and sensitive PVC based membrane sensor was fabricated by using 1,3,5-tris [(2,3-dihydroxybenzylamino) amino methyl]cyclohexane (L) as a neutral membrane carrier for the potentiometric determination of Cyclizine. The membrane with the composition of33% PVC, 64% Plasticizer, 3% PM-PMD(Ionophore) and 1% NaTPB was found to be best in terms of response characteristics of sensor assembly. Results and conclusion: The proposed membrane sensor has very low detection limit of 2.0 x 10-8 M, within the concentration range of 5.0 x 10-8 – 1.0 x 10-2 M, and has fast response time of about 10s. The proposed sensor was used for the selective determination of Cyclizine in different synthetic as well as real sample.

Keywords: Cyclizine, sensor and ionophore


Antihistamine (Histamine antagonist) is a pharmaceutical drug that inhibits action of histamine by blocking it from attaching to histamine receptors. There are several types of antihistamine drugs. H1 antihistamines are used to treat symptoms of allergy, such as runny nose and watery eyes, H2 antagonists (cimetidine), which are widely used for the treatment of acid reflux and stomach ulcers, because they decrease gastric acid production (Campbell et al.,1980). The H3 and H4 do not yet have a defined clinical use, although a number of drugs are currently in human trials (Vasile et al., 2013).

Figure 1. Decarboxylation of histidine to histamine



The increasing use of ion sensors in the fields of environmental, agricultural and medicinal analysis is stimulating analytical chemists to develop new sensors for the fast, accurate, reproducible and selective determination of various species. In the past few decades, considerable efforts have led to the development of selective sensors for various medicinal compounds (Clubley et al., 1979).

Histamine is derived from the decarboxylation histidine (amino acid). The decarboxylation is catalyzed by an enzyme histaminase, which is also involved in the metabolism of the bioactive amines. They cause the tissues in our nose to swell, our nose and eyes to run and our eyes, nose and sometime mouth to itch. Sometime they also cause itchy rash on our skin, called hives (Devarajan et al., 2006).

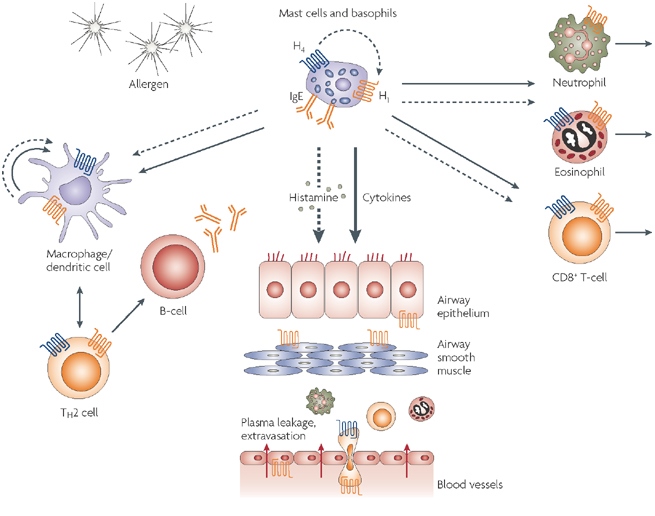

Figure 2. Mechanism of action of antihistaminic drugs




Ion selective electrodes

An ion selective electrode (ISE) measure the activity of an ion in a solution by measuring the electric potential formed across a membrane when the electrode is submerged in the solution. In order to measure the electrode potential developed at the ion-selective membrane the ISE/pH electrode must be immersed in the test solution together with a separate reference system and the two must be connected via a millivolt measuring system. At equilibrium, the electrons added or removed from the solution by the ISE membrane (depending on whether it is cation or anion sensitive) are balanced by an equal and opposite charge at the reference interface. This causes a positive or negative deviation from the original stable reference voltage, which is registered on the external measuring system (Walash et al., 2011). The relationship between the ionic concentration (activity) and the electrode potential is given by the Nernst equation:

E = E0 + (2.303RT/ nF) x Log(A)

Table 1. Ion selective electrodes in pharmaceutical analysis






Tetracycline silicotungstate

1.0 x 10-2 -3.0 x 10-5

Yao et. al. (1989)

Benzyl penicillin

Benzyl penicillin & quaternary amine

5.0 x 10-1 -5.0 x 10-3

Dumkiewics (1992)


Dinonyl naphthalene sulphonic acid

1.0 x 10-5 -1.0 x 10-6

Valsami et. al. (1989)


Tetraheptyl ammonium napronate in p-nitro cumene

1.0 x 10-1 -1.0 x 10-4

Valsami et. al. (1989)

Material and methods

Reagents and Equipments

Ammonium phosphomolybdate, Cyclizine, PVC (Poly Vinyl Chloride), DBP, DBBP, OA, CN, THF, Ion analyzer, pH meter and saturated calomel electrodes

Preparation of ion pair- compound


Cyclizine                                      :                              20ml (0.01M)

Ammonium phosphomolybdate   :                              20ml (0.01M)

Steps: 1

20 ml solution of Cyclizine +20ml of amm. Phosphomolidbate

                                   ↓(at room for temp. 1hr)

Precipitate of (PM-PMD) was obtained

Precipitate filtered off wash with water and dried

Step: 2 Cyclizine Selective PVC Membrane Electrode (Ionophore)

           PM-PMD: Plasticizers:  PVC

         3:  64:   33

                          ↓(dissolved in THF)

Resulting solution transferred into glass dish of 2cm diameter

Solvent was allowed to evaporate until conc. Mixture was obtained

A pyrex tube dipped into conc. Mixture for 10sec

A transparent membrane about 0.3mm thickness was formed

Glass then pulled out and kept at room temp. for 5 hr

     Tube was filled with an internal solution of 0.001M Cyclizine solution

                                                                 The electrode was conditioned for 24h by soaking in a 1.0x10-2M of Cyclizine solution.

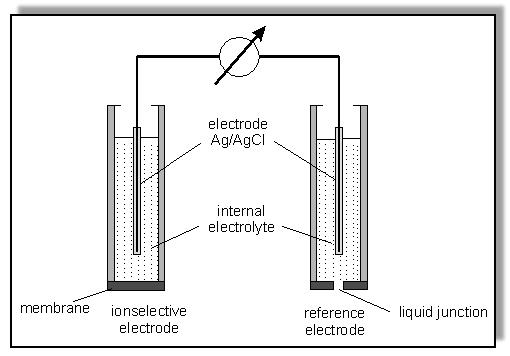

Step: 3 Cell assembly for potential measurements:

Ag/AgCl, 0.1M│ Internalreferencesolution0.001M│testsolution│1MKCl,(KCl)Ag/AgCl

Figure 3. Cell assembly




Results and discussion

The membrane electrode (no. 1) based on DBP as plasticizer has a detection limit of 1.0 x 10-6 M in a linear working concentration range of 1.0 x 10-6 M – 1.0 X 10-1 with slope of 50.5 ± 0.3 (mV/dec. of activity). It was observed that 62 – 65% of the plastcizer as membrane components gives the best posible response. It was observed that the ionophore more than 3% (w/w) as membrane component does not improved the detection limit and linear concentration range.

pH effect: It was observed that the potential of electrode assembly remains almost same in a pH range of 2.5 to 6.0.


A Cyclizine phosphomolibdate (PM-PMD) ion-pair compound was used as electroactive material for construction of Cyclizine selective electrode. The electrode of the composition of PVC: PM-PMD: DBP of 33: 3: 64 (%, w/w) has a detection limit of 1.0 x 10-6 M in a liner concentration range of 1.0 x 10-6 – 1.0 x 10-1 M with a slope of calibration curve of 50.5 ± 0.3 (mV/decay of activity). The electrode can be used in a pH range of 2.5 – 6.0 for a period of 4 weeks and has fast response time of about 5 s. The selectivity coefficient calculated by MPM method indicates that the electrode can be alllied for the determination of Cyclizine in presense of other interfering ions.


Kauffmann JM, Lopez RB, Ferrandis GM, Patriarche GJ. 1992. Electrochemical behaviour of tizanidine at solid electrodes. Journal of Pharmaceutical and Biomedical Analysis, 10:763.

Kuntzman R, Tsai I, Burns JJ. 1967. Importance of tissue and plasma binding in determining the retention of Norchlorcyclizine and Norcyclizine in man, dog and rat. Journal of Pharmacology and Experimental Therapeutics, 158: 332.

Ravisankar P, Devala RG. 2013. A novel validated RP-HPLC method for the determination of Itopride hydrochloride in bulk and pharmaceutical tablet dosage forms. International Research Journal of Pharmacy, 4:156.

Somasekhar V, Gowrisankar D. 2011. HPLC Method for the Simultaneous Determination of Paracetamol, Aceclofenac and Tizanidine Hydrochloride. Asian Journal Chemistry, 23:1651.

Walash MI, Belal FF, Eid MI, Mohamed SA. 2011. Spectrophotometric determination of tizanidine and orphenadrine via ion pair complex formation using eosin Y. Chemistry Central Journal, 5: 60.
