Research Articles

2017  |  Vol: 3(6)  |  Issue: 6 (November-December)
Synthesis and biological evaluation of some novel heterocyclic Chalcone derivatives

A. Asrar Ahamed, M. Mohamed Sihabudeen*

PG and Research Department of Chemistry, Jamal Mohamed College (Autonomous),

Affiliated to Bharathidasan University, Tiruchirappalli, Tamilnadu, India.

*Address for Corresponding Author

Dr. M. Mohamed Sihabudeen

Additional Vice Principal and Head,

PG and Research Department of Chemistry, Jamal Mohamed College (Autonomous),

Tiruchirappalli, Tamilnadu, India. Cell: 9842380379


Abstract

Objective: The chemistry of chalcones has generated intensive scientific studies throughout the world. In recent years, a variety of chalconilides have been reviewed for their cycotoxic, anticancer chemopreventive and mutagenic as well as antiviral, insecticidal and enzyme inhibitory properties. Condensation of aromatic aldehydes and aryl anilides in presence of suitable condensing agents gave chalcone derivatives. These types of chalcones are called chalconoids. Materials and methods: Heteroatoms such as N and O containing chalconoids have exhibited anti-inflammatory, antioxidant, analgesic, antitubercular and antibacterial activities etc.  Therefore an attempt has been made to synthesize chalcones by the condensation of N-phenyl acetanilides with substituted Indole-3-carbaldehydes. The resulting chalcones (A1) after purification have been converted into substituted pyrazole derivatives (A2 & A3) by reaction with hydrazine hydrate and isonicotinylhydrazide. All these compounds were characterized and confirmed by TLC, elemental analysis, IR, 1H and 13C NMR. All these compounds were screened for their potential antimicrobial activity. Results: These novel compounds showed optimum activities at 25, 50, 75 and 100 μl concentrations against antibacterial gram positive Staphylococcus aureus and Bacillus subtilis, gram negative Escherichia coli and Enterobacter microbes, antifungal Aspergillus niger and Candela albicansConclusion: These compounds containing N-phenyl acetanilide group were found to show potent analgesic and antimicrobial activities. These findings prompted us to synthesize these chalconalides which are found to be the potential antimicrobial agents.

Keywords: Chalcone, acetanilide, isonicotinylhydrazide, antimicrobial activities


Introduction

Chalcones are α, β-unsaturated Ketones containing the reactive ketoethylenic group CO-CH=CH. The name “Chalcones” was known by Kostanecki and Tambor (Pareek, et al., 2013). Chalcones are also identified as benzylideneacetophones or phenyl steryl ketones. Chalcones exist as either E or Z isomers. E isomer is one of the most stable form and consequently majority of chalcones are isolated in E isomeric form (Nowakowska et al., 2008). Flavanoids derived form chalcones are found similar to natural flavanoids (Dhar, 1981; Roger, 1988; Bent, 2002). The presence of a reactive α,β-unsaturated ketonic group in chalcone is the major cause for their antimicrobial activity (Daniela et al., 2009).

These types of chalconoids, also known as chalcones, form the fundamental core for a variety of significant biological compounds like aurones, isoxazolines, anthocynins, pyrazolines, pyrimidines, flavones, flavanols, quinoxalines, benzalcoumaranones. Some chalconoids were verified with the ability to block voltage-dependent potassium channels. Chalcones are also natural aromatize inhibitors. Chalcones are used as parent compounds in the synthesis of heterocyclic compounds containing di nitrogen atoms which are named as “di aze” (Patneedi et al., 2015).

 Nowadays several heteroatom containing chalcones have been reported to posses various chemotherapeutic activities (Nabila et al., 2012). They show wide range of biological activities such as antibacterial (Indubhushan et al., 2014), antifungal (Reddy et al., 2008), anti-inflammatory (Won et al., 2005), antitumor (Mukherjee et al., 2001), anticancer (Syam et al., 2012), antidiabetics (Soliman et al., 1987) and antiproliferative (Cui Li et al., 2017) activities.

Materials and methods

The chemicals and solvents were obtained from Sigma-Aldrich and purified. All materials used for this experiment are analytical grade. Melting points of the products were determined in open capillaries and are uncorrected. The purity of compounds was ascertained by Thin Layer Chromatography using Silica gel G plates and Chloroform: Methanol: Benzene 5:1:1 as the mobile phase. The spots were visualized in iodine chamber.1H and 13C nuclear magnetic resonance (NMR) spectra were recorded on a Bruker Avance III 500 MHz (AV 500) instrument using CDCl3 or DMSO-d6 solvent with TMS as an internal standard. Infrared spectra were recorded in Shimadzu FT-IR spectrophotometer in KBr pellets. Elemental analyses (C, H and N) were performed using a LECO CHNS 932 elemental analyser. The newly synthezised compounds were prepared under Claisen-Schimidt condensation as well as cyclisation process. The compounds were recrystallised using ethanol.

Synthesis of chalconoids

1. Preparation of (2E)-3-(1H-indol-2-yl)-N-phenylprop-2-enamide (A1)

A mixture of N-phenylacetamide (0.01 mol) and Indole-2-carbaldehyde (0.01 mol) was stirred in ethanol (30ml). To this aqueous solution of NaOH was added drop wise after 30 minutes stirring and continued for 4 hrs. The mixture was kept overnight at room temperature and then it was poured into crushed ice and acidified with HCl. The solid separated was filtered and crystallized from ethanol.

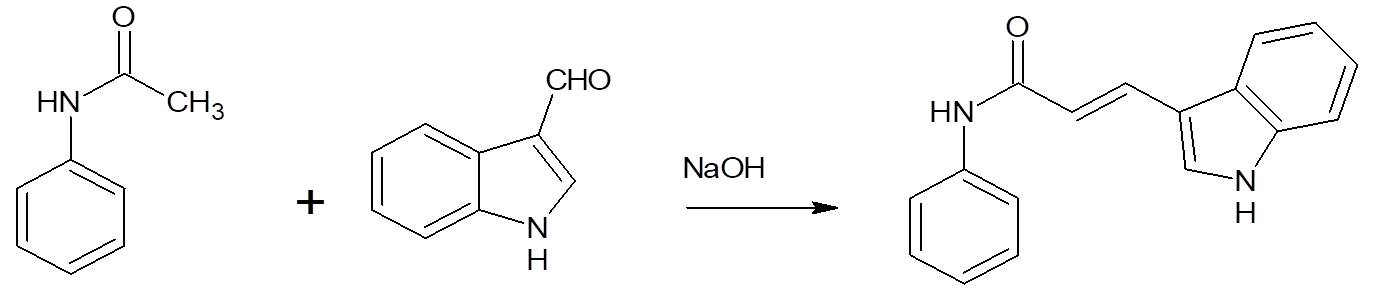

Figure 1. Synthesis of chalconoids (A1)







2. Preparation of 1-[3-anilino-5-(1H-indol-3-yl) - 4,5-dihydro-1H-pyrazol-1-yl]ethan-1-one (A2)

To the solution of (2E)-3-(1H-indol-3-yl)-N-phenylprop- 2-enamide (0.001 mol) (A1) in ethanol (30 ml) glacial acetic acid (2 ml) and 99 % hydrazine hydrate (0.002 mol) were added drop-wise and the reaction mixture was refluxed with stirring at 80o C for about 8 hours. The excess of solvent was distilled off and crude product poured into crushed ice. The solid obtained was washed with water and recrystallized from ethanol.

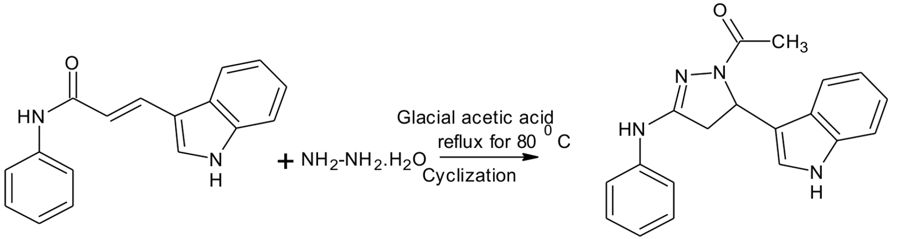

Figure 2. Synthesis of chalconoids (A2)









3. Preparation of [3-anilino-5-(1H-indol-3-yl)-4,5-dihydro-1H-pyrazol-1-yl](pyridin-4-yl) methanone (A3)

To a solution of    (2E)-3-(1H-indol-3-yl)-N-phenylprop- 2-enamide (0.001 mol) (A1) in ethanol (30 ml) glacial acetic acid (2 ml) and isonicotinylhydrazide (0.002 mol) were added drop-wise and the reaction mixture was refluxed with stirring at 80o C for about 12 hours.  The excess of solvent was distilled off and crude product was poured into crushed ice. The solid obtained was washed with water and recrystallized from ethanol. The purity of the product was checked on TLC by using mixture of acetone and petroleum ether as mobile phase.

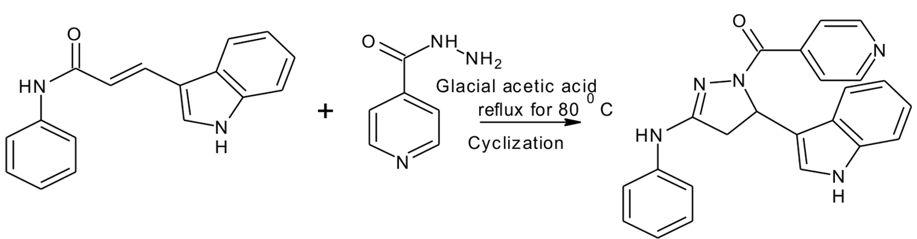

Figure 3. Synthesis of chalconoids (A3)







Results and discussion

All the synthesized compounds 1a, 2a, 3a have been characterized by their melting points, CHN analysis and spectroscopic methods such as IR, 1H, 13C, – NMR.

(2E)-3-(1H-indol-3-yl)-N-phenylprop-2-enamide (A1): M.F: C17H14N2O, M.Wt: 262.3, m.p: 232ºC, Elemental analysis: C- 77.84%, H-5.38%, N-10.68%, IR: 1625 Cm-1 (C=O), 3530 Cm-1 (NH), 1460, 1550, 1668 Cm-1 (C=C), 1300 Cm-1 (C-N), 1HNMR (300 MHz, DMSO) ppm: 7.8 (s, 1H, -NH-C=O), 6.81-7.54 (m, 15H, aromatic), 9.6 (s, 1H, indol proton), 7.2 (s, 1H, methine), 13CNMR (300 MHz, DMSO) ppm: 162.3 (C=O), 112.3-124.1 (phenyl carbons), 137.5 (Ipso carbon), 139.2 (methine carbon).

1-[3-anilino-5-(1H-indol-3-yl)-4,5-dihydro-1H-pyrazol-1-yl]ethan-1-one (A2): M.F: C19H18N4O, M.Wt: 318.3, m.p: 254 ºC, Elemental analysis: C- 71.68%, H-5.70%, N-17.68%, IR: 1655 Cm-1 (C=O), 3320 Cm-1 (NH), 1480, 1450, 1568 Cm-1 (C=C), 1320 Cm-1 (C-N), 1HNMR (300 MHz, DMSO) ppm: 3.8 (s, 1H, C-NH-C), 6.35-7.44 (m, 15H, aromatic), 9.4 (s, 1H, indol proton), 1.2 (s, 1H, methylene), 13CNMR (300 MHz, DMSO) ppm: 160.3 (C=O), 120.3-123.9 (phenyl carbons), 137.5 (Ipso carbon), 40.2 (methine carbon).

[3-anilino-5-(1H-indol-3-yl)-4,5-dihydro-1H-pyrazol-1-yl](pyridin-4-yl)methanone (A3): M.F: C23H19N5O, M.Wt: 262.3, m.p: 295 ºC, Elemental analysis: C- 72.42%, H-5.02%, N-18.36%, IR: 1565 Cm-1 (C=O), 3580 Cm-1 (NH), 1450, 1490, 1568 Cm-1 (C=C), 1340 Cm-1      (C-N), 1HNMR (300 MHz, DMSO) ppm: 3.6 (s, 1H, -NH-C), 6.41-7.64 (m, 15, aromatic), 9.4  (s, 1H, indol proton), 1.4 (s, 1H, methylene), 13CNMR (300 MHz, DMSO) ppm: 165.3 (C=O), 112.3-128.1 (phenyl carbons), 147.5, 142.3 (Ipso carbons), 41.2 (methine carbon).

Figure 4. Structure of synthesized compounds A1, A2 and A3















Antimicrobial activity

All the three newly synthesized compounds were screened for in-vitro antibacterial activity and antifungal activity. The antimicrobial activity was evaluated against 24 h culture of different bacterial strains such as Staphylococcus aureus and Bacillus subtilis (gram positive), Escherichia coli and Enterobacter (gram negative), fungal strains such as Aspergillus niger and Candela albicans. Minimum inhibitory concentration (MIC, μg/mL) of synthesized compounds were determined using broth dilution methods.

Erythromycin was used as a standard drug for the comparison of antibacterial activity. Amphotericin were used as standard drugs for the comparison of antifungal activity.

Table 1. Antimicrobial activity of compound (2E)-3-(1H-indol-2-yl)-N-phenylprop-2-enamide (A1)

Organisms

Zone of inhibition (mm/µL)

25 µL

50 µL

75 µL

100 µL

Control

Bacterial

Strain

Staphylococcus Auresus

19

20

22

25

17

Bacillus subtilis

22

24

27

29

21

Escherichia coli

21

23

25

27

19

Enterobacter

18

20

22

25

17

Fungi

Strain

Aspergillus niger

25

27

24

30

23

Candida albicans

17

19

21

24

15

Table 2. Antimicrobial activity of compound 1-[3-anilino-5-(1H-indol-3-yl)-4,5-dihydro-1H-pyrazol-1-yl]ethan-1-one (A2)

Organisms

Zone of inhibition (mm/µL)

25 µL

50 µL

75 µL

100 µL

Control

Bacterial Strain

Staphylococcus Auresus

18

21

23

27

15

Bacillus subtilis

21

24

28

25

20

Escherichia coli

26

19

22

24

18

Enterobacter

23

26

24

28

21

Fungi

Strain

Aspergillus niger

27

29

25

28

24

Candida albicans

19

21

23

26

17

Table 3. Antimicrobial activity of compound 3-anilino-5-(1H-indol-3-yl)-4,5-dihydro-1H-pyrazol-1-yl](pyridin-4-yl)methanone (A3)

Organisms

Zone of inhibition (mm/µL)

25 µL

50 µL

75 µL

100 µL

Control

Bacterial Strain

Staphylococcus Auresus

15

17

19

21

13

Bacillus subtilis

21

23

26

24

19

Escherichia coli

25

27

29

31

22

Enterobacter

19

21

25

    27

17

Fungi

Strain

Aspergillus niger

26

29

31

33

24

Candida albicans

25

29

27

30

23

Conclusion

In the present work, we synthesized the chalconoids (2E)-3-(1H-indol-3-yl)-N-phenylprop-2-enamide (A1) and pyrazole derivatives 1-[3-anilino-5-(1H-indol-3-yl)-4,5-dihydro-1H-pyrazol-1-yl]ethan-1-one(A2) and 3-anilino-5-(1H-indol-3-yl)-4,5-dihydro-1H-pyrazol-1-yl](pyridin-4-yl)methanone (A3). The newly synthesized compounds were obtained in good yields and confirmed their structures on the basis of spectral and elemental analysis data. Erythromycin and Amphotericin are used as standard for antibacterial and antifungal activity. The antimicrobial activity of synthesized compounds reveals that they are showing optimum activity compared to standard drug.

Conflict of interest

There is no conflict of interest in the present study.

References

Pareek A, Ranin P,  Kumar N, Sharma P, Kishore D. 2013. An efficient synthesis and applications of chalcones in organic synthesis. International Journal of Chemistry and Pharmaceutical Science 4(3): 19-24.

Nowakawska Z, Kedzia B, Schroeder G. 2008. Synthesis, physicochemical properties and antimicrobial evaluation of new (E)-chalcones. European Journal of Medical Chemistry 43(4): 707-713.

Dhar DN. 1981. Chemistry of Chalcones and related compounds 1st ed., John Wiley, New York.

Roger CR. 1988. The nutritional incidence of flavanoids. some physiological and metabolic Consideration. Experientia 44: 725-731.

Bent HH. 2002. The biochemistry and medical significance of the flavanoids, Pharmacology and Therapeutics 96: 67-202.

Daniela B, Stoyan P, Bistra S, Mariana N, Hiristo N. 2009. Examination of growth inhibitor properties of synthetic chalcones for which antibacterial activity was predicted. European Journal of Medical Chemistry 44: 2211-2218.

CB Patneedi, Durga Prasadu K, Sharma RSK. 2015. Synthesis of the heterocyclic chalconoid derivatives. Der Pharma Chemica; 7(8): 10-16.

Nabila A Al-Jaber, Amal S.A. Bougasim, Makarem M.S. Karah. 2012. Study of Michael addition on chalcones and or chalcone analogues. Journal of Saudi Chemical society 16: 45-53.

Indubhushan Sangeeta, Alka N Choudhary, Preeti Kothiyal. 2014. Synthesis of chalconolides as Antimicrobial agents. International journal of pharmaceutical and chemical sciences 3(1): 77- 80.

Sanjeeva Reddy C, Nagaraj A. 2008. Synthesis and biological study of novel bis-chalcones, bis- thiazines and bis-pyrimidines. Journal of Iran Chemical Society 5(2): 262-267.

Shen-Jeu Won, Cheng-Tsung Liu, Lo-Ti Tsao, Jing-Ru Weng, Horng-Huey Ko, Jih-Pyrang Wang, Chun-Nan Lin. 2005. Synthetic chalcones as potential anti-inflammatory and cancer chemopreventive agents. European Journal of Medical Chemistry 40: 101-112.

Mukherjee S, Kumar V, Prasad AK, Raj HG, Bracke ME, Olsen CE, Jain SC, Parmar VS. 2001. Synthetic and biological activity evaluation studies on novel 1,3-diarylpropenones.Bioorganic Medicinal Chemistry 9: 337-345.

Suvitha Syam, Siddiq Ibrahim Abdelwahab, Mohamed Ali Al-Mamary, Syan Mohan. 2012.  Synthesis of chalcones with anticancer activities, Molecules 17: 6179.

Soliman R, Faid-Allah, Sadany SK. 1987. Preparation and antidiabetic activity of new substituted 3,5-diarylpyrazolesulfonylurea derivatives II: structure activity relationship. Journal of Pharmaceutical Science 76, 626.

Cui Li, Gangqiang Wang, Xueli Li, Quian Wang. 2017. Synthesis and antiproliferative activity of aminoalkylated chalcones on three human cancer cells. Medicinal Chemistry Research 1-8.
