Research Articles

2018  |  Vol: 4(5)  |  Issue: 5 (September- October)  |  https://doi.org/10.31024/ajpp.2018.4.5.9
Computational study of 2,3-disubstituted-4(3H)quinazolinone derivatives as CNS active compounds: QSAR approach

Rakesh Kumar Jaina, Vaibhav Rajoriyab, Varsha Kashawa*

aSVN Institute of Pharmaceutical Sciences, SVN University, Sagar, Madhya Pradesh, India

bDepartment of Pharmaceutical Sciences, Dr. Hari Singh Gour University, Sagar, Madhya Pradesh, India

*Address for Corresponding Author

Dr. (Mrs.) Varsha Kashaw

Prof. & Head

SVN Institute of Pharmaceutical Sciences,

Swami Vivekananda University, Sagar (M.P.) India


Abstract

Objective: Quantitative structure activity relationship (QSAR) model for anticonvulsant activity was developed from a set of twenty seven, 2,3-disubstituted-4(3H)quinazolinone derivatives that exhibited remarkable inhibition by in-vivo locomotor activity in Swiss albino mice using phenytoin as model drug. Material and methods: The 2D-QSAR studies were carried out using the partial least squares (PLS) method coupled with stepwise variable selection, with r2 = 0.9949 and q2 = 0.9761; the 3D-QSAR studies were performed using stepwise variable selection k-nearest-neighbour molecular field analysis (kNN-MF) approach; with cross-validated correlation coefficient (q2) of 0.7818 and a predicted r2 for the external test (pred_r2) of 0.5904. Results and conclusion: Experimental results revealed that the molecular weight, alignment-independent descriptors, electrostatic and steric field descriptors were significantly correlated to anticonvulsant activity of 2,3-disubstituted-4(3H)quinazolinone derivatives. The results helped to understand the nature of substituent around quinazolinone nucleus, thereby providing new guidelines for the design of novel anticonvulsant drugs.

Keywords: 2D-QSAR, 3D QSAR, anticonvulsant activity, 2,3-disubstituted-(3H)quinazolinone,  PLS method, kNN-MFA method


Introduction

Convulsion or epilepsy is a common neurological disorder characterize by recurrent spontaneous seizures, is a major health problem that affects 0.5-1% the population and up to 50%. Convulsion is a medical condition where body muscles contract and relax rapidly and repeatedly, resulting in an uncontrolled shaking of the body. Although a convulsion is often a symptom of an epileptic seizure, the term convulsion is sometimes used as a synonym for seizure. Many effective antiepileptic drugs are available on the market and include phenobarbital, phenytoin, carbamazepine and valproic acid (Tripathi, 2013). Despite advances in technology and understanding of biological systems, drug discovery is still a lengthy, expensive, difficult and inefficient process with low rate of new therapeutic discovery (Anson et al., 2009). Currently, the research and development cost of each new molecular entity (NME) is approximately US$1.8 billion (Paul et al., 2010).

Quantitative structure–activity relationship models (QSAR models) are regression or classification models used in the chemical and biological sciences and engineering. Like other regression models, QSAR regression models establish a linear relationship between a set of molecular descriptors of chemicals and the biological activity of the chemical while classification QSAR models shows a non-linear relationship between a set of molecular descriptors of chemicals and the biological activity of the chemical (Pahwa and Papreja, 2014). QSAR studies can reduce the costly failures of drug candidates in clinical trials by In recent year’s quantitative structure activity relationship studies (QSAR) have become an integral part of drug discovery processes. 2D and 3D-QSAR have focused on the development of procedure that allows selection of optimal variables from the pool of descriptors of chemical structures i.e. ones that are most meaningful and statistically significant in terms of correlation with biological activity, filtering the combinatorial libraries (Sethi 2012). In continuation of the research of molecular modelling, here in this article we report the 2D and 3D QSAR analysis of indole/benzoximidazole-5-carboximidine derivatives as anti-cancer agents by VlifeSciences MDS molecular modelling package (Dixit et al., 2011; Rathi et al., 2001; Kashaw et al., 2003; Kashaw et al., 2003; Dixit et al., 2004; Pandey et al., 2004). Present work is an effort to develop predictive QSAR models for 2,3-dihydroquinazolin-4(1H)-one derivatives as anticonvulsant agents.

Materials and Methods

Selection of molecules and Data set

QSAR studies were carried out on synthesized 2,3-disubstituted-4(3H)quinazolinone derivative.  The compounds of the series were reported to be potent inhibitor of locomotor activity. The series contain a total of 27 compounds shown in table 1. The experiment was performed on albino mice and the results were expressed in percent inhibition.

Table 1. Structures of the compounds in the series along with their biological activity

S. No.

Code

R

R1

log P

Percent decrease/  inhibition in locomotor action

  1.

RKJ46

2,4,6-trimethylaniline

4-bromophenyl

6.54

58

  1.

RKJ47

2,4,6-trimethylaniline

4-chlorophenyl

6.27

56

  1.

RKJ48

2,4,6-trimethylaniline

4-methylphenyl

6.2

54

  1.

RKJ30

2,4-dichloroaniline

4-bromophenyl

6.19

55

  1.

RKJ38

2,4-dimethylaniline

4-bromophenyl

6.05

53

  1.

RKJ31

2,4-dichloroaniline

4-chlorophenyl

5.92

52

  1.

RKJ32

2,4-dichloroaniline

4-methylphenyl

5.85

53

  1.

RKJ39

2,4-dimethylaniline

4-chlorophenyl

5.78

52

  1.

RKJ40

2,4-dimethylaniline

4-methylphenyl

5.71

52

  1.

RKJ45

2,4,6-trimethylaniline

Phenyl

5.71

50

  1.

RKJ18

4-chloroaniline

4-bromophenyl

5.64

50

  1.

RKJ26

4-methylaniline

4-bromophenyl

5.56

49

  1.

RKJ42

2,3,4-trifluoroaniline

4-bromophenyl

5.55

55

  1.

RKJ34

2,4-difluoroaniline

4-bromophenyl

5.39

51

  1.

RKJ19

4-chloroaniline

4-chlorophenyl

5.37

51

  1.

RKJ29

2,4-dichloroaniline

Phenyl

5.37

49

  1.

RKJ20

4-chloroaniline

4-methylphenyl

5.29

55

  1.

RKJ27

4-methylaniline

4-chlorophenyl

5.29

52

  1.

RKJ43

2,3,4-trifluoroaniline

4-chlorophenyl

5.28

53

  1.

RKJ22

4-fluoroaniline

4-bromophenyl

5.24

48

  1.

RKJ28

4-methylaniline

4-methylphenyl

5.22

54

  1.

RKJ37

2,4-dimethylaniline

Phenyl

5.22

51

  1.

RKJ44

2,3,4-trifluoroaniline

4-methylphenyl

5.21

50

  1.

RKJ35

2,4-difluoroaniline

4-chlorophenyl

5.12

48

  1.

RKJ36

2,4-difluoroaniline

4-methylphenyl

5.05

54

  1.

RKJ8

2,4,6-trimethylphenyl



5.37

54

  1.

RKJ4

2,4-dichlorophenyl



5.02

52

2D QSAR

All the compounds for 2D QSAR were subjected to energy minimization to get 3D structure by MMFF (Molecular mechanics force field method). The QSAR work sheet was generated using biological activity as dependent variable and various 2D descriptors as independent variables (Sharma et al., 2010). Various 2D descriptors like topological, physicochemical, alignment-independent descriptors (Leszczynski, 2010) were calculated after which by invariable column was removed and the training and test set was selected by Manual Selection Method. The model for the 2D- QSAR study was generated using PLS with forward backward as the variable selection method.

3D QSAR

3D-QSAR refers to the application of force field calculations requiring three-dimensional structures, e.g. based on protein crystallography or molecule superimposition (Ibezim et al., 2009). In 3D QSAR conformers were generated by Monte Carlo conformational search method and the conformers of least energy were selected for the alignment. All the compounds were aligned by template based method, where, a template was built by considering common substructures in the series. Usually, the lowest energy conformer of the most active compound is selected as a reference (Xu et al., 2002). For 3D the molecules were converted from 2D to 3D structures, optimized by MMFF (Molecular mechanics force field method) and then were aligned using Template based Alignment method by taking most active molecule (Figure1) as the reference molecule and basic moiety (Figure 2) as the template. The alignment is shown in figure 3. The QSAR model was build by KNN method using forward-backward as variable selection method .It examines the steric fields and the electrostatic fields.

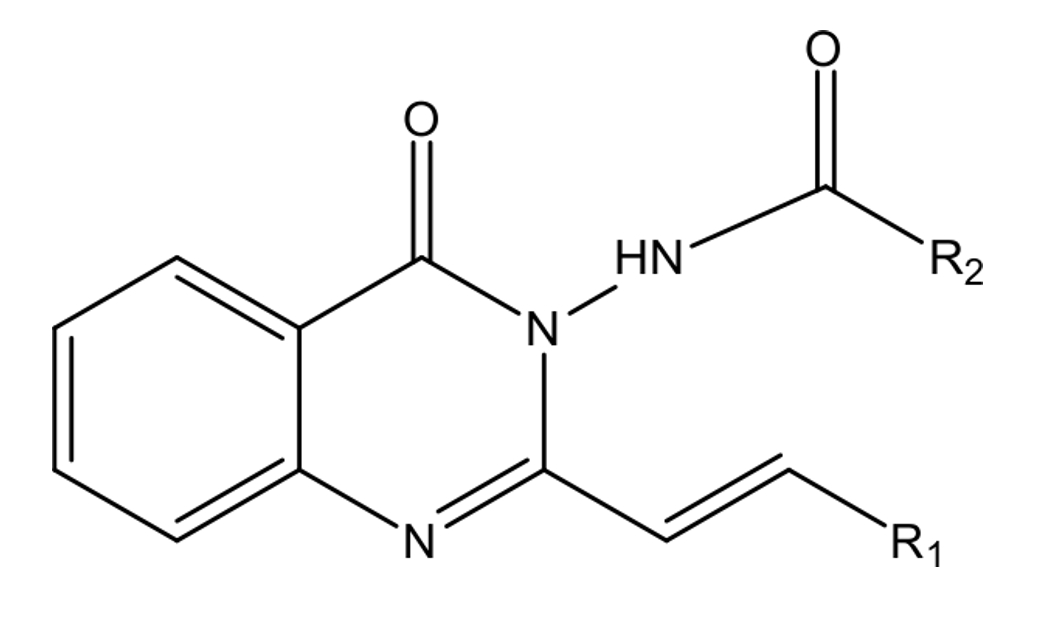

Figure 1. Reference molecule used for alignment by template based alignment

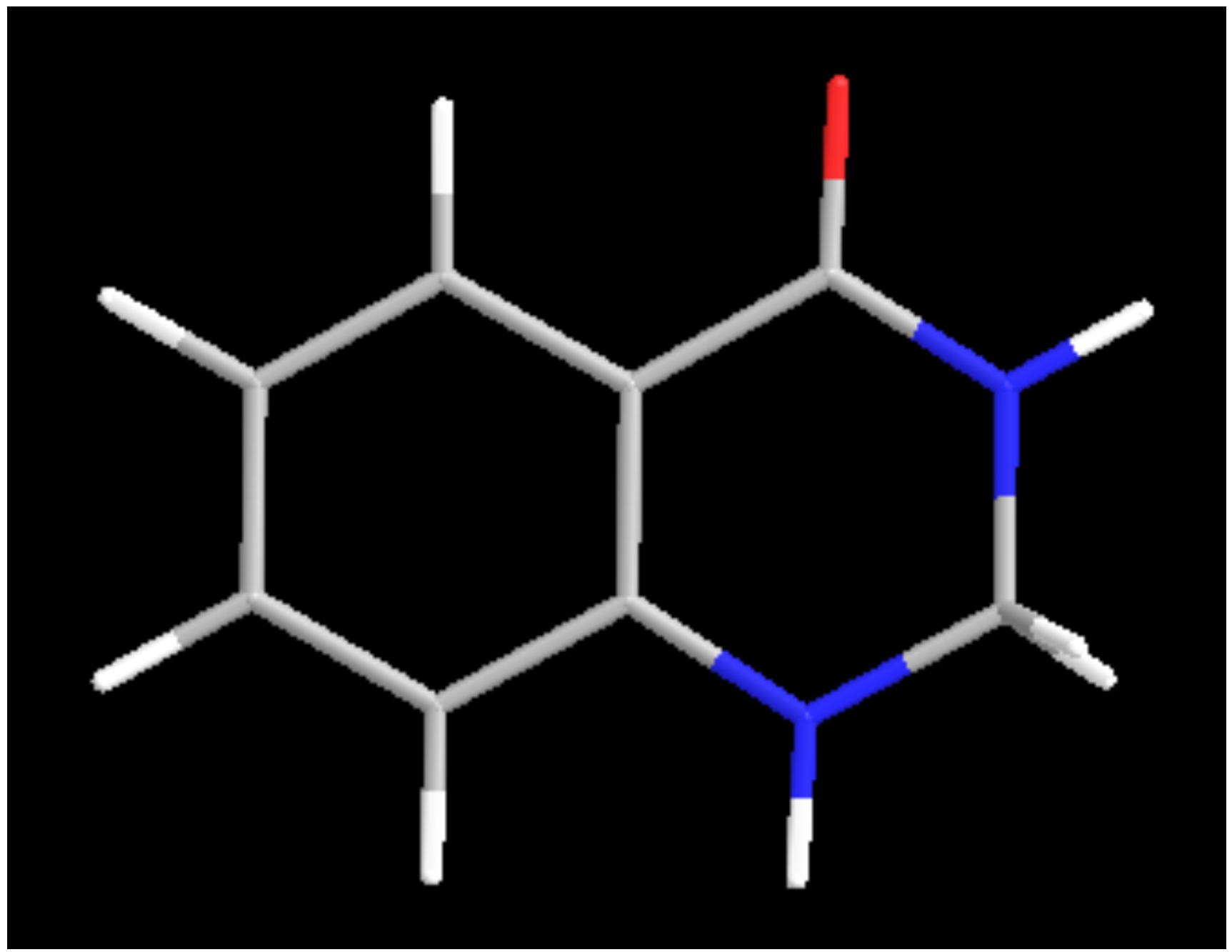

Figure 2. 2,3-dihydroquinazolin-4(1H)-one used as template

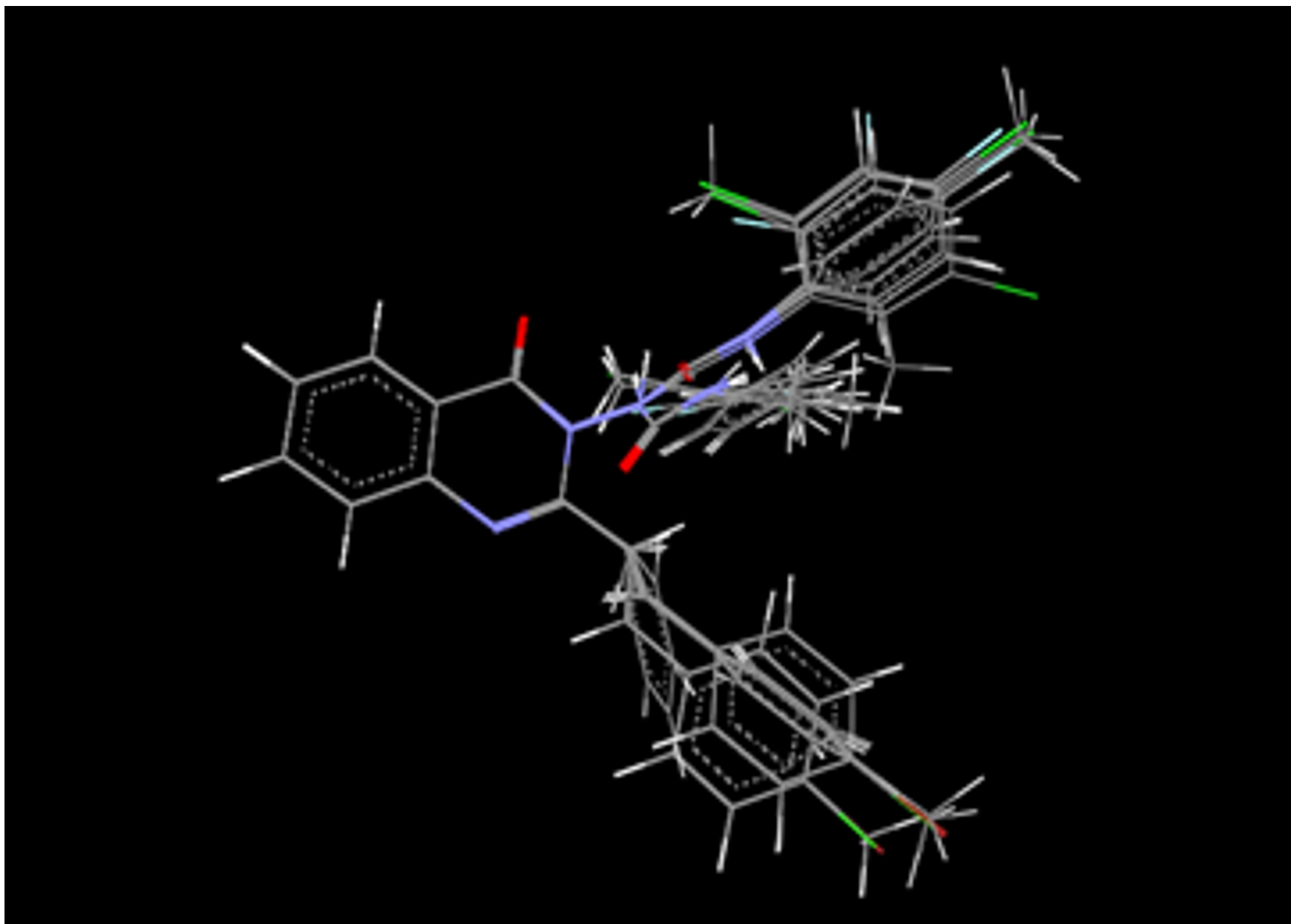

Figure 3. 3D view of aligned molecules







Results and discussion

2D QSAR

In the present study, training and test sets were generated by using manual method followed by partial least squares regression coupled with stepwise forward-backward variable selection method. Compounds were divided in training and test set in a way that biological activities of all compounds in test set lie within the maximum and minimum value range of biological activities of training set of compounds. 2D QSAR equations were selected by optimizing the statistical results generated along with variation of the descriptors in these models. The frequency of use of a particular descriptor in the population of equations indicated the relevant contributions of the descriptors. Several 2D QSAR model were constructed and the best one regression equation obtained is represented in Eq. 1: Percent Inhibition= 2.5529chiV3Cluster + 0.3533Bromines Count -0.1499 T_N_Cl_4 + 0.411 1chi4 +1.7509.

The statistical result of 2D QSAR model along with the contribution of the descriptors is given in table 2. In 2D QSAR model r2 > 0.9 suggests significant percentage of the total variance in biological activity is accounted by the model. Low value of standard error of estimate (r2_se< 0.0326) indicates the accuracy of the statistical fit. The stability of model judged by leave-one-out procedure is fairly good (q2> 0.9) suggesting that the model can be utilized for predictions.

Table 2. Statistical results of 2D QSAR model generated by PLS method and 3D QSAR model generated by SW kNN MFA method

Statistical Parameter

Results

2D QSAR

3D QSAR

N

18

18

Degree of Freedom

14

14

r2

0.9949

-

r2se

0.0326

-

q2

0.9761

0.7818

q2se

0.0704

0.1802

pred_r2

0.9933

0.5904

pred_r2se

0.0356

0.3095

F-test

908.07

-

k-nearest Neighbour

-

2

Contributing descriptor

  1. chiV4
  2. chiV3Cluster
  3. Bromines Count
  4. T_N_Cl_4
  1. S_664      ( -0.6866 -0.0931)
  2. S_1158    (-0.2742 -0.2311)
  3. S_1434    (-0.0084 -0.0069)

Furthermore, the predictive potential of model is good as observed by the pred_r2 = 0.9933. Low values of q2_se (standard error of q2) = 0.0704 and pred_r2_se (standard error of predicted squared regression) = 0.0356 also suggest significance of the model. The correlation matrix given in table 3 indicated the absence multi co-linearity in the model. Figure 4 gives a pictorial representation of different 2D parameters and their contribution towards percent inhibition.

Figure 4. Contribution chart of selected 2D descriptors for CNS activity





Table 3. Correlation matrix for the descriptors contributing to 2D QSAR model

Contributing descriptor

chiV4

chiV3Cluster

Bromines Count

T_N_Cl_4

chiV4

1







chiV3Cluster

0.825

1





Bromines Count

0.129

0.173

1



T_N_Cl_4

-0.091

-0.162

-0.171

1

chiV4: The first contributing descriptor is chiV4 (approx 19%). This signifies atomic valence connectivity index (order 4). Its positive contribution indicating that atom substituted by 4th order i.e. is tetra substituted well for activity.

chiV3 Cluster: This descriptor signifies valence molecular connectivity index of 3rd order cluster. The positive value signifies that increase in 3rd order cluster i.e. is tri substituted groups will favors the activity. chiV3 Cluster was found to be most influencing descriptor (approx 45%) in determining the activity.

Bromines Count: Bromines Count (approx 30%) which is again positively contributing to the activity. Bromines Count signifies number of bromine atoms in a compound i.e substitution of bromine like atoms enhance the activity.

T_N_Cl_4: The fourth contributing descriptor is T_N_Cl_4 which is negatively contributing (approx -10%). This is Alignment Independent descriptor signifies the count of number of Nitrogen atoms (single double or triple bonded) separated from any other chlorine atom by 4 bond distance in a molecule. It is indicating that the substitution of chlorine like atom should not be above said bond distance.

Uni-column statistics (Table 4) for training and test set were generated to check correctness of selection criteria for training and test set molecules. It is clear that the test set was interpolative i.e. derived within the min-max range of the training set. The mean of the test set were higher than the training set indicated the presence of relatively more active molecules as compared to the inactive ones. Figure 5 shows the plot between the observed and predicted activity. From the plot it is clear that the model is able to predict the activity of the training set quite well (all points are close to regression line) as well as external test set (all points of test set are close to regression line and well covered by training points), providing confidence in predictive ability of the model also the residual values were obtained near to zero. Therefore it was concluded that the resulting QSAR model has good predictive ability.

Figure 5. Fitness plot between observed and predicted activities of the training (blue spot) and test (red spot) molecules of 2D QSAR model



The predicted activity values for the compounds in the training set and test set, along with their corresponding observed activity values are given in table 4.

Table 4. Uni-Column statistics for training set and test set

Set

Column Name

Average

Max

Min

Std. Dev.

Sum

Training

% inhibition

5.6372

6.5400

5.0200

 0.4132

99.6700

Test

% inhibition

5.5378

6.2700

5.0000

5.1200

50.7400

3D QSAR

3D QSAR models were generated using kNN MFA coupled with stepwise forward-backward variable selection method (SW kNN MFA). This is followed by generation of a common rectangular grid around the molecules. The steric and electrostatic interaction energies are computed at the lattice points of the grid using a methyl probe of charge +1. After the selection of the test and training sets, kNN MFA methodology was applied to the descriptors generated over the grid as shown in the ‘Show Point’ (Figure 6) and the best SW kNN-MFA 3D QSAR model have a q2 of 0.7818 and pred_ r2 of 0.5904 (Table 2) was considered.

Figure 6. Relative positions of the local fields (steric and electrostatic) around aligned molecules



The predicted activity values for the compounds in the training set and test set, along with their corresponding observed activity values, are given in table 4 and the fitness plot shown in Figure 7. The range of property values in the generated data points helped for the design of NMEs. These ranges were based on the variation of the field values at the chosen points using the most active molecule and its nearest neighbor set.

Figure 7. Fitness plot between observed and predicted activities of the training (blue spot) and test (red spot) molecules of 3D QSAR model



The points generated in SW kNN MFA 3D QSAR model are S_664 (-0.6866 -0.0931), S_1158 (-0.2742 -0.2311) and S_1434 (-0.0084 -0.0069). These points suggested the significance and requirement of electrostatic and steric properties as mentioned in the ranges in parenthesis for structure–activity relationship and maximum biological activity of 2,3-disubstituted-4(3H)quinazolinone  analogues. Negative and positive values in steric field descriptors indicated the requirement of negative and positive steric potential, respectively for enhancing the biological activity of 2,3-disubstituted-4(3H)quinazolinone analogues.

Therefore less steric and more steric substituent were preferred at the position of generated data points S_457 (-0.6725, -0.6305) and S_649 (9.0580, 9.2042), respectively around 2,3-disubstituted-4(3H)quinazolinone pharmacophore. Similarly the positive values of electrostatic descriptors suggested the requirement of electropositive or less electronegative groups at the position of generated data point E_756 (3.9104, 4.5117), around 2,3-disubstituted-4(3H)quinazolinone pharmacophore for maximum activity. Results obtained and points generated around 2,3-disubstituted-4(3H)quinazolinone pharmacophore using the 3D QSAR studies was used for correlation chemical nature of substituent’s around 2,3-disubstituted-4(3H)quinazolinone rings with their observed activity.

Substitution at R2: Three data points generated at the position of R2 around 2,3-dihydroquinazolin-4(1H)-one  were steric points S_664 ( -0.6866 -0.0931); S_1158 (-0.2742 -0.2311) and S_1434  (-0.0084 -0.0069). These points showed that less steric substituent required around 2,3-disubstituted-4(3H)quinazolinone ring, when 2,4,6-trimethylaniline; 2,4-dichloroaniline; 2,4-dimethylaniline; 2,4,6-trimethylaniline,  4-methylaniline; 2,3,4-trifluoroaniline; 2,4-difluoroaniline, 2,4-dichloroaniline; 4-chloroaniline; 4-methylaniline, 2,3,4-trifluoroaniline; 4-fluoroaniline; 2,4-difluoroaniline was added. Simultaneously the steric point S_1158 (-0.2742 -0.2311) and S_1434 (-0.0084 -0.0069) indicated that no steric changes required at lattice 664.

Substitution at R1: 3D QSAR studies showed requirement of more steric group at R1 position. The steric data point generated was S_664 (-0.6866 -0.0931) indicates sterically bulky group like 4-bromophenyl, 4-chlorophenyl, 4-methyl phenyl were required at R1 position.

The overall findings of 2D & 3D QSAR suggested presence of positive steric potential at R2 position in 2,3-disubstituted-4(3H)quinazolinone nucleus i.e. R2 position in 2,3-disubstituted-4(3H)quinazolinone nucleus should acquire more bulk as well as according to 3D QSAR results substitution on R1 position should be changed sterically with 4-bromophenyl, 4-chlorophenyl, 4-methylphenyl, results indicated to decrease the steric bulk. Results of 2D and 3D QSAR were validated by substituting the groups and atoms on 2,3-disubstituted-4(3H)quinazolinone nucleus. Designed compounds showed potent anticonvulsant activity by the generated QSAR models.

Conclusion

QSAR study was performed on 2,3-dihydroquinazolin-4(1H)-one derivatives for their CNS activity. In addition, phenyl ring attached should be substituted with less electronegative group and bulkier groups should be placed on R2 position. There proposed changes may produce such physico-chemical changes in the compounds which will help them to bind efficiently with the target receptor.

Acknowledgement

Firstly I am thankful to Dr. Sushil Kumar Kashaw for precious guidance during this work.

Conflicts of interest: None

References

Anson BD, Ma J, He JQ. 2009 Identifying cardiotoxic compounds. Genetic Engineering & Biotechnology News, 29:34-35.

Dixit A, Kashaw S, Gaur S, Saxena A. 2004. Development of CoMFA, advance CoMFA and CoMSIA models in pyrroloquinazolines as thrombin receptor antagonist. Bioorganic & Medicinal Chemistry, 12:3591.

Dixit A, Shukla G, Kashaw V,  Kumar A, Tiwari SB, Kashaw S. 2011. QSAR Studies in 2-(5-bromo-2,3-dimethoxyphenol)-5-(Aminomethyl)-14-Pyrrole analogues for their bending affinity at D2 and D3 receptors. International Journal of Pharmacy & Biology, 1:425-436.

Ibezim CE, Duchowicz RP, Ibezim EN, Mullen MAL, Onyishi VI, Brown AS,
Castro AE. 2009. Computer-Aided Linear Modeling Employing QSAR for Drug Discovery. African Journal of Basic & Applied Sciences, 1(3-4):76-82.

Kashaw S, Mishra P, Saxena A. 2003. Quantitative structure-activity studies of imidazolidinone benzenesulfonamides: human beta3–adrenergic receptor agonists acting as antiobesity drugs. Indian Chemical Society, 80:858.

Kashaw S, Rathi LG, Mishra P, Saxena A. 2003. Development of 3D-QSAR
models in cyclic ureidobenzenesulfonamides: human β3-Adrenergic receptor agonist. Bioorganic & Medicinal Chemistry Letters, 13: 2481.

Leszczynski J. 2010. Challenges and advances in computational chemistry and research Puzyn Tomasz, T.D. Mark Cronin (ed) Recent Advances in QSAR Studies Method and Applications, Springer, New York, 3-11.

Pahwa P, Papreja M. 2014. Validation of SOMFA using Data Mining Technique. International Journal of Soft Computing and Engineering, 4:2231-2307.

Pandey G, Kashaw S, Saxena A. 2004. CoMFA, advance CoMFA and COMSIA studies on the oxadiazole substituted a-isopropoxy phenylpropionic acids for PPARa agonistic activity. Medicinal Chemistry Research, 13:677-686.

Paul SM, Mytelka DS, Dunwiddie CT, Persinger CC, Munos BH, Lindborg
SR, Schacht Al. 2010. How to improve R&D productivity: the pharmaceutical
industry's grand challenge. Nature Reviews Drug Discovery, 9:203-214.

Rathi LG. Kashaw S, Agarwal RK, Mishra P. 2001. Comparative molecular field analysis: a modern approach towards drug design. Indian Journal of Pharmaceutical Sciences, 63: 367.

Sethi NS. 2012. A review on computational methods in developing quantitative structureactivity relationship (QSAR). International Journal of Drug Research and Technology, 2(4S):313-341.

Sharma BK, Pilania P, Prithvi Singh P. 2010. QSAR rationales for the 1,2-diaryl cyclopentenes as prostaglandin EP1 receptor antagonists: potentially useful in the treatment of inflammatory pain. European Journal of Chemistry, 1(4):325–334.

Tripathi KD. Essential of Medicinal Pharmacology, 7th edition, Jaypee Brothers Medical Publisher. 2013, 739.

Xu M, Zhang A, Han S, Wang L. 2002 Studies of 3d-quantitative structure activity relationships on a set of nitroaromatic compounds: CoMFA, advanced CoMFA and CoMSIA. Chemosphere, 48:707-715.
